Product Details
Place of Origin: JIANG SU
Brand Name: STARRY AND OEM
Certification: ISO9000
Model Number: 5/32;3/16
Payment & Shipping Terms
Minimum Order Quantity: 500 Piece/Pieces
Price: Negotiable
Packaging Details: pvc bags and Plastic tube
Delivery Time: 25DAYS
Supply Ability: 500000 Piece/Pieces per Month Masonry Drill Bit
Material: |
High Carbon Steel |
Tip Material: |
Tungsten Carbide |
Process: |
Milled Flutes And Welded TipS |
Surface Finish: |
Black And White Finished |
Shank: |
Tapcon Shank |
Standard: |
ANSI |
Material: |
High Carbon Steel |
Tip Material: |
Tungsten Carbide |
Process: |
Milled Flutes And Welded TipS |
Surface Finish: |
Black And White Finished |
Shank: |
Tapcon Shank |
Standard: |
ANSI |
| 1. Ideal for drilling concrete, granite, rock, brick, stone, breeze block. |
| 2. Self-centering tip for clean entry and fast starts. Stays sharp longer. |
| 3. 2× longer life than standart hammer drill bits. |
| 4. Our U flute design for faster, more efficient dust removal. |
| 5. Premium steel improves core strength for maximum durability and extended life. |
| Professional quality for efficient and fast hammer drilling in hard materials. |
1. Description:

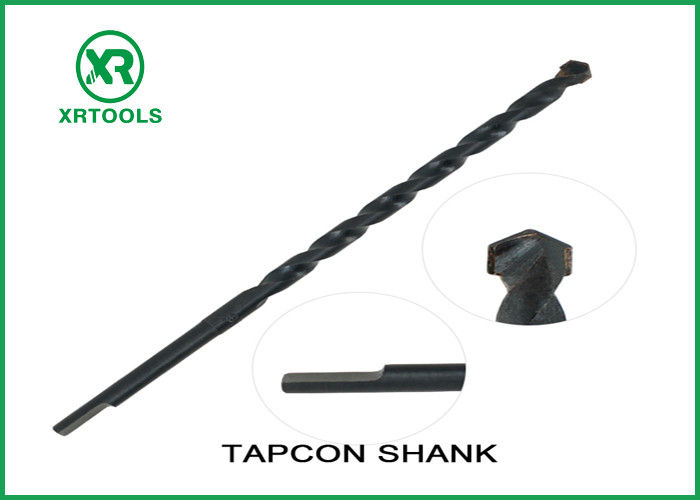

| Product Name | Tapcon Screw Masonry Drill Bit Drilling Pilot Holes in Concrete Block Brick for Tapcon Screw Anchor |
| Shaft Material | Carbon Steel with Heat Treatment |
| Tip Material | Tungsten Carbide |
| Shank | Tapcon Shank (SDS Plus Tapcon Shank is available ) |
| Shank | Tapcon Shank (SDS Plus Tapcon Shank is available ) |
| Diameter |
The 3/16” Tapcon Screw Requires the use of 5/32" diameter Tapcon Drill Bit; The 1/4” Tapcon Screw requires the use of 3/16" diameter Tapcon Drill Bit |
| Length | The length of the Tapcon Drill bit must be long enough to ensure that the hole drilled into the base material is 1/2” deeper than the Tapcon screw. |
| Surface Finish | Sand Blasted or Black Oxide |
| Package | One Piece in One PVC Pouch Or In One PVC Tube or Double Blister |
| Features |
1.Used for drilling pilot holes in masonry including concrete, block, brick, Ceramic Tile, Bricks, Granite, Stones. 2. Engineered to seamlessly work with tapcon concrete screw anchors ensuring an accurate fit. 3. Hardened, premium carbide insert tip is strong and stays sharp longer for finer material break up and easier drilling. 4. Tight bit tolerance provides maximum anchor performance. 5. Flat shank prevents bit slippage and ensures the precise drilling of pilot holes when Installing Anchors. 6.For use with masonry fastening systems/hex sleeve drive tools. 7. The length of the Tapcon bit to use must be long enough to ensure that the hole drilled into the base material is 1/2” deeper than the Tapcon screw will penetrate the base material. For installing 3/16" Tapcon fasteners, use a 5/32" Tapcon drill bit, For installing 1/4" Tapcon fasteners, use a 3/16" Tapcon drill bit. |
| Drill Bit Diamater | Length | For use with tapcon screw diamater | For use tapcon screw Length |
| 5/32' | 3-1/2' | 3/16' | 1-1/4'to2' |
| 5/32' | 4-1/2' | 3/16' | 2-1/4'to 2-3/4' |
| 5/32' | 5-1/2' | 3/16' | 3-1/4'to 4' |
| 5/32' | 7' | 3/16' | 1-1/4'to 4' |
| 3/16' | 3-1/2' | 1/4' | 1-1/4'to 1-3/4' |
| 3/16' | 4-1/2' | 1/4' | 2-1/4'to 2-3/4' |
| 3/16' | 5-1/2' | 1/4' | 3-1/4'to 4' |
| 3/16' | 7' | 1/4' | 1-1/4' to 4' |
1. Experience : We are a supplier of many brands in Germany. So we have the confidence to provide you with the best service.
2. Quality Control : Quality Control System from STARRY Germany ensure our STARRY Factory's products and service QUALITY which have strict processing quality Control for every step.
3. Service : We offer OEM&ODM service.and we accept trial order. If you find any problem. we'll find the suitable solution.
4. Product : We have confidence in the quality of our products.and the product prices are also competitive.
Q1: Do you have your own brand?
A1: Yes, the brand name is STARRY Tools, we can provide OEM services to our customers as well.
Q2: What's your target market?
A2: We mainly focus on Europe and South America right now.
Q3: What is the biggest advantage compared to the rivals?
A3: We are one of the strongest HSS Cutting tools supplier in China.
Q4: What is your MOQ?
A4: 500 pcs
Q5: What about the payment and delivery time?
A5: Delivery time: All items are ready in stock and can be sent within one week.
Payment: T/T.
100% protection for product quality, on-time shipment and payment
Q6: Can I get some samples?
A6: Yes, we are honored to offer you samples for quality check at your freight cost.
Q7: How does your factory do regarding quality control?
A7: Quality is priority. We always attach great importance to quality control from the very beginning to the end of the production. Every product will be carefully tested before it's packed for shipment.
