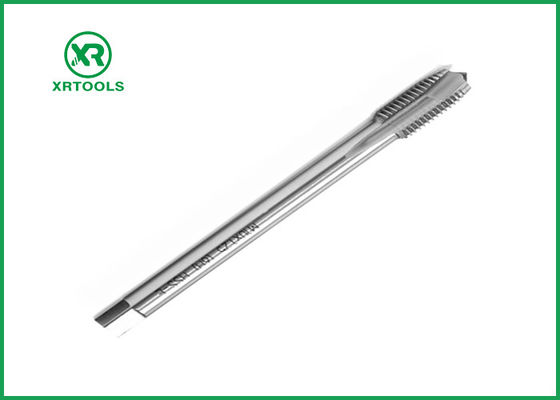

Through Hole Spiral Point Tap DIN 374 HSS M35 Material Customized Size

Through Hole Spiral Point Tap DIN 374 HSS M35 Material Customized Size

Through Hole Spiral Point Tap DIN 374 HSS M35 Material Customized Size
Through Hole Spiral Point Tap DIN 374 HSS M35 Material Customized Size
Through Hole Spiral Point Tap DIN 374 HSS M35 Material Customized Size
Product Details:
Place of Origin: CHINA
Brand Name: STARRY
Certification: ISO9000
Model Number: M6-M30
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: plastic box
Delivery Time: 35days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 15000pcs per day
Contact Now
Detailed Product Description
Name: Left Hand Metric Taps Material: Hss-4241;HSS-4341;HSS-M2;HSS-M35
Surface: White Finished Standard: DIN374
Precision: 6H Application: Stainless Steel,Copper,Thread Tapping
High Light:

left hand metric taps

,

thread forming tap



Through Hole Spiral Point Tap DIN 374 HSS M35 Material Customized Size



High speed steel taps 0f Description



1. Complete hole drilling, tapping, deburring and countersinking in one operation with power drill saves labor and time.
2. Self-centering point, do not need assistant center drilling or center punching.
3. Taps produce internal threads in previously formed holes and can be used in machines (such as drill presses) or with

hand tools.
4. Modified bottoming chamfer has additional length to reduce chip load, add tool life, and permit higher tapping speeds.
5. High-speed steel tools are good for most general purpose applications, offering a combination of hardness and

toughness for wear resistance.
6. Made from HSS with titanium coated, high hardness and rust resistance, durable and long service life.
7. Suitable for drilling, tapping, cutting on soft metal, aluminum plate, iron, etc.



Application :



Suitable for through hole tapping of carbon steels and nonferrous metals whose chips are produced in continuous coil form.

These taps discharge chips through the hole.Used for short screw -in length in a through and blind hole. Recommended for threading

in low-alloyed steels, cast, nodular cast iron, tempered, cast and the other metals.





HSS hand tap of Specification



d1 p L1 L2 d2 k
mm (pitch) mm mm mm (h12)
mm
M6 0,5 80 14 4,5 3,4
M6 0,75 80 14 4,5 3,4
M8 0,5 80 16 6,0 4,9
M8 1 90 16 6,0 4,9
M10 0,75 90 20 7,0 5,5
M10 1 90 20 7,0 5,5
M10 1,25 90 20 7,0 5,5
M12 1 100 22 9,0 7,0
M12 1,25 100 22 9,0 7,0
M12 1,5 100 22 9,0 7,0
M14 1 100 22 11,0 9,0
M14 1,25 100 22 11,0 9,0
M14 1,5 100 22 11,0 9,0
M16 1 100 22 12,0 9,0
M16 1,5 100 22 12,0 9,0
M18 1 110 25 14,0 11,0
M18 1,5 110 25 14,0 11,0
M20 1 125 25 16,0 12,0
M20 1,5 125 25 16,0 12,0
M22 1,5 125 25 18,0 14,5
M24 1,5 140 28 18,0 14,5
M28 1,5 140 28 20,0 16,0
M30 1,5 150 28 22,0 18,0
○ Ask Price and Deadline.





size:

Through Hole Spiral Point Tap DIN 374 HSS M35 Material Customized Size 0

pic:



Through Hole Spiral Point Tap DIN 374 HSS M35 Material Customized Size 1
