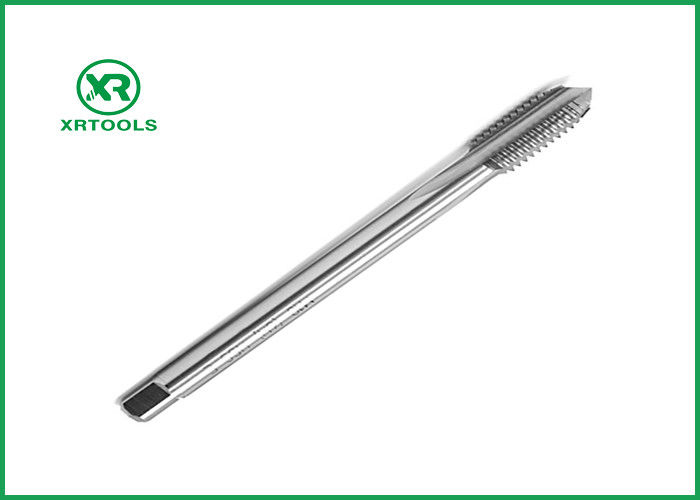

High Speed Steel Straight Flute Tap , DIN 376 Flat Bottom Tap For Drilling Machine

Product Details

Place of Origin: CHINA

Brand Name: STARRY

Certification: ISO9000

Model Number: M3-M30

Payment & Shipping Terms

Minimum Order Quantity: 100 PCS

Price: Negotiable

Packaging Details: plastic box

Delivery Time: 35days

Payment Terms: T/T, L/C, Western Union, MoneyGram

Supply Ability: 15000pcs per day

Get Best Price
Highlight:

thread cutting taps

,

flat bottom tap

,

din 376 flat bottom tap

Material:
;HSS-4341;HSS-M2;HSS-M35
Type:
Tap
Surface:
Fully Ground
Standard:
DIN376
Precision:
6H
Flute:
Straight Flute
Application:
Manual Tapping , Thread Tapping
Material:
;HSS-4341;HSS-M2;HSS-M35
Type:
Tap
Surface:
Fully Ground
Standard:
DIN376
Precision:
6H
Flute:
Straight Flute
Application:
Manual Tapping , Thread Tapping
High Speed Steel Straight Flute Tap , DIN 376 Flat Bottom Tap For Drilling Machine

1. Product Description





HSS (High-Speed Steel) machine taps are cutting tools used in machining operations to create internal threads in various materials, such as metal, plastic, or wood. HSS taps are made from a type of tool steel known as high-speed steel, which has properties that make it suitable for cutting at high speeds.







* Taper Taps: 6-8 pitches chamfered; Plug Taps: 4-5 pitches chamfered; Bottoming Taps: 2-3 pitches chamfered;

* Size smaller than M6(incl.M6)No.1& No.2&No.3with 2 pointed ends,Size over M8(incl.M8) with 2 flat ends.

* Tolerance: 6H,RH and LH.

* Laser-printing on tap.







High Speed Steel Straight Flute Tap , DIN 376 Flat Bottom Tap For Drilling Machine 0



Product Name

DIN376 STRAIGHT FLUTE TAPS

Material

High Speed Steel 4341 6542 M35 and so on

Hardness

 HRC62-66

Surface treatment

White(We can supply differenk kinds surface treatment to you )

Operation method

Threading machine,CNC lathe,Milling and drilling machine,Lathe

Application

Suitable for through hole tapping of carbon steels and nonferrous metals whose chips are produced in continuous coil form.These taps discharge chips through the hole.



2. size

High Speed Steel Straight Flute Tap , DIN 376 Flat Bottom Tap For Drilling Machine 1



d1 p L1 L2 d2 k
mm (pitch) mm mm mm (h12)
mm
M3 0,5 56 10 2,2 -
M4 0,7 63 12 2,8 2,1
M5 0,8 70 14 3,5 2,7
M6 1 80 16 4,5 3,4
M8 1,25 90 18 6,0 4,9
M10 1,5 100 20 7,0 5,5
M12 1,75 110 24 9,0 7,0
M14 2 110 26 11,0 9,0
M16 2 110 28 12,0 9,0
M18 2,5 125 30 14,0 11,0
M20 2,5 140 32 16,0 12,0
M22 2,5 140 32 18,0 14,5
M24 3 160 34 18,0 14,5
M27 3 160 38 20,0 16,0
M30 3,5 180 45 22,0 18,0
Ask Price and Deadline.





3. Application:

Used for short screw -in length in through and blind hole. Suitable for threading in low-alloyed steels, cast, nodular cast iron, tempered, cast and the other metals.



High Speed Steel Straight Flute Tap , DIN 376 Flat Bottom Tap For Drilling Machine 2

4. Packing and Deliver:



High Speed Steel Straight Flute Tap , DIN 376 Flat Bottom Tap For Drilling Machine 3



High Speed Steel Straight Flute Tap , DIN 376 Flat Bottom Tap For Drilling Machine 4



5. Why choose us:

1. Experience : We are a supplier of many brands in Germany. So we have the confidence to provide you with the best service.

2. Quality Control : Quality Control System from STARRY Germany ensure our STARRY Factory's products and service QUALITY which have strict processing quality Control for every step.

3. Service : We offer OEM&ODM service.and we accept trial order. If you find any problem. we'll find the suitable solution.

4. Product : We have confidence in the quality of our products.and the product prices are also competitive.



6. FAQ:

Q1: Do you have your own brand?
A1: Yes, the brand name is STARRY Tools, we can provide OEM services to our customers as well.

Q2: What's your target market?
A2: We mainly focus on Europe and South America right now.

Q3: What is the biggest advantage compared to the rivals?
A3: We are one of the strongest HSS Cutting tools supplier in China.


Q4: What is your MOQ?
A4: 500 pcs

Q5: What about the payment and delivery time?
A5: Delivery time: All items are ready in stock and can be sent within one week.
Payment: T/T.

100% protection for product quality, on-time shipment and payment



Q6: Can I get some samples?
A6: Yes, we are honored to offer you samples for quality check at your freight cost.

Q7: How does your factory do regarding quality control?
A7: Quality is priority. We always attach great importance to quality control from the very beginning to the end of the production. Every product will be carefully tested before it's packed for shipment.
