Home > products > SDS Drill Bits > L Flute Twist Long SDS Drill Bits , Rotary Hammer Drill Bits For Concrete

L Flute Twist Long SDS Drill Bits , Rotary Hammer Drill Bits For Concrete

Product Details

Place of Origin: JIANG SU CHINA

Brand Name: STARRY AND OEM

Certification: ISO9000

Model Number: 4-40MM

Payment & Shipping Terms

Minimum Order Quantity: 100 Piece/Pieces

Price: Negotiable

Packaging Details: One Piece in One PVC Pouch Or Plastic Hanger or PVC Tube or PVC Double Blister

Delivery Time: 30days

Supply Ability: 500000 Piece/Pieces per Month SDS Hammer Drill Bit

Get Best Price
Highlight:

sds plus drill bits

,

rotary hammer drill bits

Type:
Twist Drill Bit
Material:
Tungsten Carbide
Use:
Masonry Drilling
Process:
Milled Flutes And Welded Tip
Body Material:
40Cr Steel With Heat Treatment
Tip Material:
Tungsten Carbide
Tip Type:
Single Tip
Flute Type:
S4 Flute
Surface Finish:
Sand Blasted
Shank:
SDS Plus Shank
Standard:
DIN8035 And ANSI
Type:
Twist Drill Bit
Material:
Tungsten Carbide
Use:
Masonry Drilling
Process:
Milled Flutes And Welded Tip
Body Material:
40Cr Steel With Heat Treatment
Tip Material:
Tungsten Carbide
Tip Type:
Single Tip
Flute Type:
S4 Flute
Surface Finish:
Sand Blasted
Shank:
SDS Plus Shank
Standard:
DIN8035 And ANSI
L Flute Twist Long SDS Drill Bits , Rotary Hammer Drill Bits For Concrete

L Flute Twist Long SDS Drill Bits , Rotary Hammer Drill Bits For Concrete

Product Name Carbide Single Tip S4 Flute SDS Plus Hammer Drill Bit For Concrete and Hard Stone
Material Body: 40Cr Steel with Heat Treatment; Tip: Tungsten Carbide ; Finish: Sand Blasted

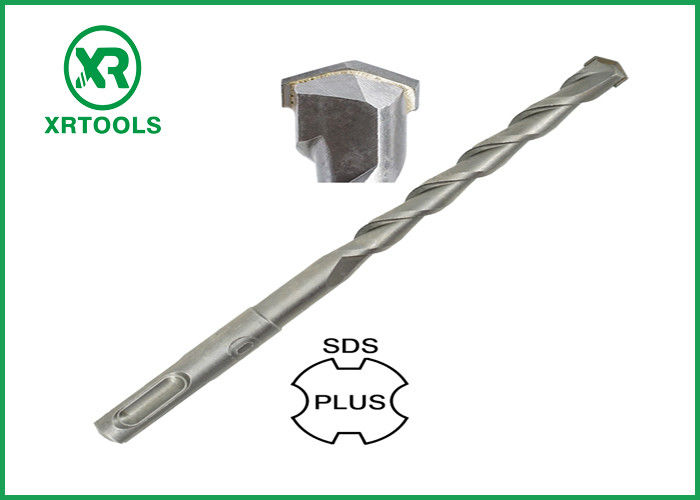

1. Photos

L Flute Twist Long SDS Drill Bits , Rotary Hammer Drill Bits For Concrete 0



2. Description:


Process Milled Flutes and Welded Tip (Auto Welded Tip is available)
Tip Type Single Tip (Cross Head, Centric Tip, X Head are available)
Shank SDS Plus Shank (SDS Max Shank, Spline Shank, Hex Shank and SDS Tapcon Shank are available)
Flute Type S4 Flute (L Flute, U Flute are available)
Features

1.Professional quality for efficient and fast hammer drilling in hard materials like concrete, granite, brick and other similar building materials.

2.Premium 40Cr steel with heat treatment improves core strength for maximum durability and extended life.

3.Hardened, premium carbide insert tip is strong and stays sharp longer for finer material break up and easier drilling.increases strength and durability.

4.Copper braze material gives high heat resistance for reduced tip loss,Carbide tip securely embedded in the steel body.

5.4-fold spiral flute (S4) for rapid drilling dust removal. With even less vibration and more precise guiding, the stability and service life of the drill bit are increased.

6.Wear mark identifies when bit has worn to an inappropriate level for precision anchoring.

7.Compatible with all SDS-Plus style chucks.

3. Size:

Diameter Length Diameter Length Diameter Length
4 110 8 310 26 460
5 110 10 310 28 460
6 110 12 310 30 460
6.5 110 14 310 32 460
8 110 16 310 12 500
10 110 18 310 14 500
4 160 20 310 16 500
5 160 22 310 18 500
6 160 24 310 20 500

6.5

160 26 310 24 500
7 160 28 310 28 500
8 160 30 310

30

500
9 160 32 310 32 500
10 160 8 360 14 600
11 160 10 360 16 600
12 160 12 360 20 600
14 160 14 360 24 600
16 160 16 360 28 600
18 160 18 360 30 600
20 160 20 360 32 600
6 210 22 360 18 800
8 210 24 360 20 800
10 210 26 360 22 800
12 210 28 360 25 800
14 210 30 360 26 800
16 210 32 360 28 800
18 210 12 410 30 800
20 210 14 410 20 1000
22 210 16 410 22 1000
24 210 18 410 24 1000
25 210 20 410 26 1000
26 210 22 410 28 1000
6 260 24 410 30 1000
8 260 26 410 32 1000
10 260 28 410 34 1000
12 260 30 410 36 1000
14 260 32 410 38 1000
16 260 12 460 40 1000
18 260 14 460
20 260 16 460
22 260 18 460
24 260 20 460
26 260 22 460
28 260 24 460
30 260 25 460



4. Application:

L Flute Twist Long SDS Drill Bits , Rotary Hammer Drill Bits For Concrete 1



L Flute Twist Long SDS Drill Bits , Rotary Hammer Drill Bits For Concrete 2



5. Package:

L Flute Twist Long SDS Drill Bits , Rotary Hammer Drill Bits For Concrete 3

6. Why choose us:

1. Experience : We are a supplier of many brands in Germany. So we have the confidence to provide you with the best service.

2. Quality Control : Quality Control System from STARRY Germany ensure our STARRY Factory's products and service QUALITY which have strict processing quality Control for every step.

3. Service : We offer OEM&ODM service.and we accept trial order. If you find any problem. we'll find the suitable solution.

4. Product : We have confidence in the quality of our products.and the product prices are also competitive.



7. FAQ:

Q1: Do you have your own brand?
A1: Yes, the brand name is STARRY Tools, we can provide OEM services to our customers as well.

Q2: What's your target market?
A2: We mainly focus on Europe and South America right now.

Q3: What is the biggest advantage compared to the rivals?
A3: We are one of the strongest HSS Cutting tools supplier in China.


Q4: What is your MOQ?
A4: 500 pcs

Q5: What about the payment and delivery time?
A5: Delivery time: All items are ready in stock and can be sent within one week.
Payment: T/T.

100% protection for product quality, on-time shipment and payment



Q6: Can I get some samples?
A6: Yes, we are honored to offer you samples for quality check at your freight cost.

Q7: How does your factory do regarding quality control?
A7: Quality is priority. We always attach great importance to quality control from the very beginning to the end of the production. Every product will be carefully tested before it's packed for shipment.
