Product Details
Place of Origin: CHINA
Brand Name: Starry
Certification: ISO9000
Model Number: M3*0.5
Payment & Shipping Terms
Minimum Order Quantity: 500 sets of the yellow box hand taps
Price: Negotiable
Packaging Details: yellow plastic box
Delivery Time: 30 working days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Material: |
9sicr |
Surface:: |
Red Color Hand Taps |
Hardness: |
60-62hrc |
Thread Angle: |
66° |
Type: |
Hand Thread Taps |
OEM: |
Accept |
Material: |
9sicr |
Surface:: |
Red Color Hand Taps |
Hardness: |
60-62hrc |
Thread Angle: |
66° |
Type: |
Hand Thread Taps |
OEM: |
Accept |
These are straight flute general purpose hand taps which can be used for both machine or hand tapping. They are generally the most economical tool for use on production runs, but are best on materials that produce chips, or where the swarf breaks readily. Where deep holes are to be tapped, in materials which produce stringy swarf, other types of taps may be needed, especially for coarse threads.

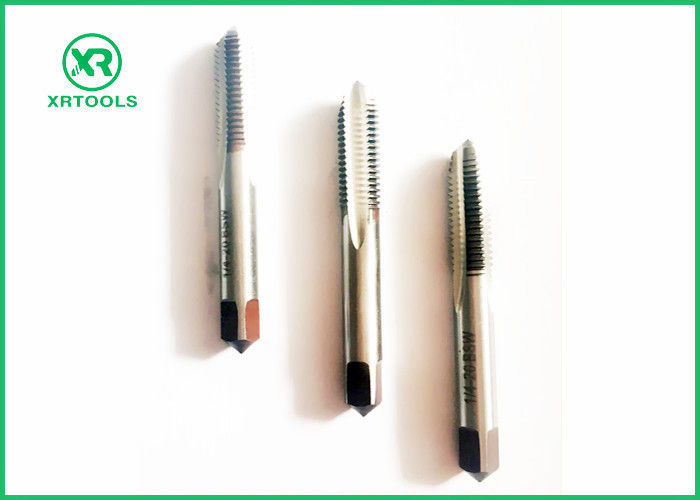

Hand taps can be supplied in sets of three; bottom, second and taper leads, or individually.
TAPER TAPS have a lead of 7-10 threads at 5 degrees per side. The taper lead distributes the cutting force over a large area, and the taper shape helps the thread to start. They can therefore be used to start a thread prior to use of second or bottom leads, or for through holes.
SECOND TAPS have a lead of 3-5 threads at 8 degrees per side. They are the most popular and can be used for through holes, or blind holes where the thread does not need to go right to the bottom.
BOTTOM TAPS have a chamfer (lead) of 1–2 threads, the angle of the lead being around 18 degrees per side. They are used to produce threads close to the bottom of blind holes.
Application:
• The most common style of the 9sicr hand tap.
• Can be used by hand or for tapping under power.
• Versatile taps for use in general machine tapping or CNC tapping applications.
• Use for through hole or blind hole tapping.
Size | Overall Length | Thread Length |
M3*0.5 | 46 | 18 |
M4*0.7 | 52 | 20 |
M5*0.8 | 60 | 22 |
M6*1 | 62 | 24 |
M7*1 | 65 | 26 |
M8*1.25 | 70 | 30 |
M9*1.25 | 72 | 30 |
M10*1 | 70 | 30 |
M10*1.25 | 75 | 32 |
M10*1.5 | 75 | 32 |
M12*1.75 | 82 | 38 |
M14*2 | 88 | 42 |
M16*2 | 95 | 45 |
M18*1 | 95 | 45 |
M18*2 | 95 | 45 |
M18*2.5 | 100 | 48 |
M20*1 | 80 | 30 |
M20*1.5 | 95 | 45 |
M20*2 | 95 | 45 |
M20*2.5 | 105 | 50 |
M22*1 | 85 | 30 |
M22*1.5 | 95 | 45 |
M22*2 | 95 | 45 |
M22*2.5 | 115 | 55 |
M24*2 | 95 | 45 |
M24*2.5 | 115 | 55 |
M26*1.5 | 95 | 45 |
M27*1.5 | 95 | 45 |
M27*2 | 95 | 45 |
M27*3 | 130 | 62 |
M30*2 | 105 | 45 |
M30*3 | 135 | 65 |
M30*3.5 | 135 | 65 |
M33*3 | 145 | 70 |
M33*3.5 | 145 | 70 |
M36*3 | 155 | 75 |
M36*4 | 155 | 75 |
M38*1.5 | 115 | 45 |
M40*1.5 | 115 | 45 |
M40*2 | 115 | 45 |
M40*3 | 165 | 80 |
M42*1.5 | 120 | 45 |
M42*2 | 120 | 45 |
M42*3 | 175 | 80 |
M42*4 | 175 | 80 |
M42*4.5 | 175 | 85 |
M45*1.5 | 120 | 45 |
M45*2 | 120 | 45 |
M45*3 | 180 | 80 |
M45*4 | 180 | 80 |
M45*4.5 | 180 | 85 |
M48*1.5 | 125 | 45 |
M48*2 | 125 | 45 |
M48*3 | 180 | 80 |
M48*4 | 180 | 80 |
M48*5 | 185 | 90 |
M50*1.5 | 130 | 45 |
M50*2 | 130 | 45 |
M50*3 | 180 | 80 |
Each hand taps set we will use the good quality yellow box this kinds box packing .
Then put the plastic box into the inner box.
The put the inner box in the cartons.
At last put the cartons in the pallet.
1. Low MOQ: Along with your promotional business very well.
2. OEM Accepted : We can produce any your design .
3. Logo: All products well packaged with or without labels , Customers required labels and logos are
acceptable
4. Good Service : Clients are our Friends
5. Stock : Standard hand taps ,machine taps are Rich in Stock .
6. Reasonable price:Best quality along with reasonable prices. Discount based on Quantity
7. Good Quality :Quality can be guaranteed with the CNC Machine and our serious QC .Good reputation in the market.
8. Payment Grading: You can pay 30% in advance first , then pay the rest 70% when we finished the goods before shipping.
Q1: Do you have your own brand?
A1: Yes, the brand name is STARRY Tools, we can provide OEM services to our customers as well.
Q2: What's your target market?
A2: We mainly focus on Europe and South America right now.
Q3: What is the biggest advantage compared to the rivals?
A3: We are one of the strongest HSS Cutting tools supplier in China.
Q4: What is your MOQ?
A4: 500 pcs
Q5: What about the payment and delivery time?
A5: Delivery time: All items are ready in stock and can be sent within one week.
Payment: T/T.
100% protection for product quality, on-time shipment and payment
Q6: Can I get some samples?
A6: Yes, we are honored to offer you samples for quality check at your freight cost.
Q7: How does your factory do regarding quality control?
A7: Quality is priority. We always attach great importance to quality control from the very beginning to the end of the production. Every product will be carefully tested before it's packed for shipment.
