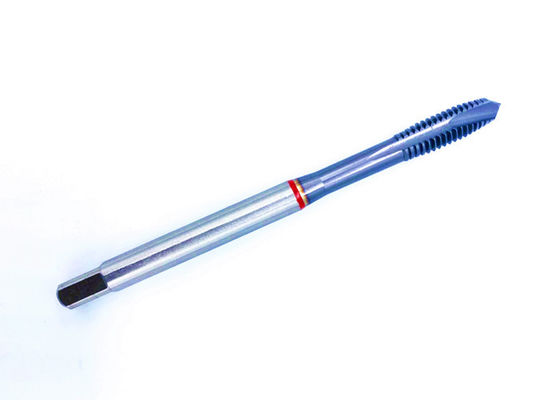

Red Ring M6X1.0 Spiral Point TICN Coated HSS Machine Taps

Product Details

Place of Origin: JIANG SU

Brand Name: STARRY

Certification: ISO9000

Model Number: M6X1

Payment & Shipping Terms

Minimum Order Quantity: 200pcs

Packaging Details: plastic box

Delivery Time: 30days

Payment Terms: L/C, T/T

Supply Ability: 10000pcs one mouth

Get Best Price
High Light:

TICN Coated HSS Machine Taps

,

M6X1.0 Spiral Point Machine Taps

,

Red Ring HSS Machine Taps

Name:
HSS-E Spiral Point Machine Tap
Size:
M6X1.0
Material:
HSS-E(HSS-M35)
Hardness:
HRC 63-67
Usage:
Internal Thread Cutting
Tolerance:
6H
Standard:
DIN371
Application:
Stainless Steel,Copper,Hardened Steel,Aluminium
Name:
HSS-E Spiral Point Machine Tap
Size:
M6X1.0
Material:
HSS-E(HSS-M35)
Hardness:
HRC 63-67
Usage:
Internal Thread Cutting
Tolerance:
6H
Standard:
DIN371
Application:
Stainless Steel,Copper,Hardened Steel,Aluminium
Red Ring M6X1.0 Spiral Point TICN Coated HSS Machine Taps

Red Ring HSS-E M6X1.0 Spiral point machine taps TICN coated

Description



Machine tap with reinforced shank, for through threads in aluminium, aluminium alloys, bronze,copper, nickel and plastics.



Chamfer: type C / 2 - 3 threads

Thread: metric, DIN ISO 13

Flanks: relief-ground

  1. To cut an internal thread, at first a core hole is drilled, whose diameter is approximately smaller by the pitch of the thread than the nominal diameter of the thread.
  2. Subsequently tapered counter bores are placed,which match the size of the thread diameterplus 10% of it. This is done to get a better insertion into the bore hole and to prevent the first and the last thread from being pushed out when beginning to cut.
  3. Then the taps are screwed in and out in order.The final core hole diameter is created through the additional plastic deformation of the thread flanks.



Specification



Item Name Red Ring HSS-E M6X1.0 Spiral point machine taps TICN coated
Brand STARRY or Customized
Marking Laser printing
Material HSS-E
Sample Available
Sample Time 7-14 Days
Delivery time 30-60 Days After Deposit Paid
Service OEM,ODM Or Customized
Thread size M6X1.0
Thread Length 15mm
Chamfer Length 2.3P
Total Length 80mm
Shank Diameter 6.0mm
Square 4.9*4.9*8mm
Coating TICN
Color Blue Gray
Application Suitable for Stainless Steel,aluminnum alloy,magnesium alloy,zinc alloy
Drill hole Through hole
Machine Platform CNC, Automatic Lathe, Tapping Machine,



The Spiral Point machine tap consists of cobalt alloyed and vaporised heavy duty high-speed steel. For through threads and bottoming threads in unalloyed and alloyed steels up to a strength of 1000 N/mm², staniless steel, malleable cast iron and non-ferrous metals. The thread is cut in
one operation.



Application:


1.high alloy steel
2.short-chipping material
3.short-chipping stainless steel
4.alloy tool steel
TiCN-coating
excellent wear resistance by improved hardness and thoughness
intensive and optimal cooling required because of lower heat resistance



The Features of this spiral point taps: plug chamfer and right hand thread cutting. 3 straight flutes are ground to provide downward chip removal.
High-speed steel tool (M35) is great for general purpose applications, offering high hardness and toughness. TICN coating for improving wear and fusion resistance, long service life
This kinds machine taps are great for through-hole threads. Can be used for drilling and tapping stainless steel (below 30HRC), aluminum, die steel, ordinary steel, non-ferrous metals, hard plastics, etc..









Nominal
thread size
Pitch
mm
Thread core hole
Ø1 mm
L1
mm
L2
mm
Ø2
mm
M6 1.0 5 80 15 6




Detail of the M6X1.0 machine taps size:



Red Ring M6X1.0 Spiral Point TICN Coated HSS Machine Taps 0

The packing of the machine taps:

we usually use plastic box packing the machine taps,if you need high quality,we also can purchase ROSE brand plastic box.



Red Ring M6X1.0 Spiral Point TICN Coated HSS Machine Taps 1

Red Ring M6X1.0 Spiral Point TICN Coated HSS Machine Taps 2
