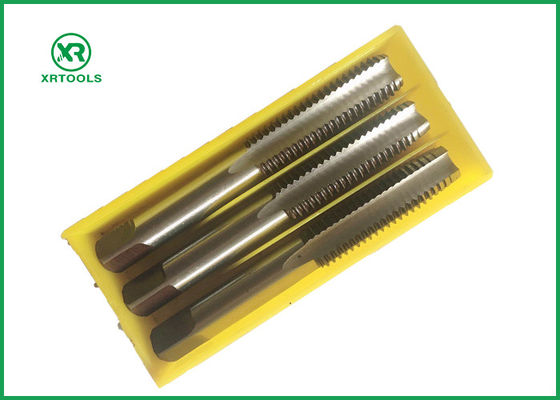

Rolling 6mm Thread Tap 9XC Material ,Hard Red Finish Taper Hand Tap

Rolling 6mm Thread Tap 9XC Material ,Hard Red Finish Taper Hand Tap

  • Rolling 6mm Thread Tap 9XC Material ,Hard Red Finish Taper Hand Tap
  • Rolling 6mm Thread Tap 9XC Material ,Hard Red Finish Taper Hand Tap
  • Rolling 6mm Thread Tap 9XC Material ,Hard Red Finish Taper Hand Tap
Rolling 6mm Thread Tap 9XC Material ,Hard Red Finish Taper Hand Tap
Product Details:
Place of Origin: CHINA
Brand Name: Starry
Certification: ISO9000
Model Number: M12*1.75
Payment & Shipping Terms:
Minimum Order Quantity: 500 sets of the yellow box hand taps
Price: Negotiable
Packaging Details: yellow plastic box
Delivery Time: 30 working days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Contact Now
Detailed Product Description
Thread Angle: Left Hand Metric Taps Material: 9sicr
Surface:: Red Color Hand Taps Hardness: 60-62hrc
Standard: ANSI Application: Tapping
High Light:

taper hand tap

,

plug hand tap

Rolling 6mm Thread Tap 9XC Material ,Hard Red Finish Taper Hand Tap

Description

These are straight flute general purpose hand taps which can be used for both machine or hand tapping. They

are generally the most economical tool for use on production runs, but are best on materials that produce chips,

or where the swarf breaks readily. Where deep holes are to be tapped, in materials which produce stringy swarf,

other types of taps may be needed, especially for coarse threads.

Hand taps can be supplied in sets of three; bottom, second and taper leads, or individually.





TAPER TAPS have a lead of 7-10 threads at 5 degrees per side. The taper lead distributes the cutting force over a large area, and the taper shape helps the thread to start. They can therefore be used to start a thread prior to use of second or bottom leads, or for through holes.

PLUG TAPS have a lead of 3-5 threads at 8 degrees per side. They are the most popular and can be used for through holes, or blind holes where the thread does not need to go right to the bottom.

BOTTOMING TAPS have a chamfer (lead) of 1–2 threads, the angle of the lead being around 18 degrees per side. They are used to produce threads close to the bottom of blind holes.





HSS Machine Taps of Application:



• The most common style of the 9sicr hand tap.
• Can be used by hand or for tapping under power.
• Versatile taps for use in general machine tapping or CNC tapping applications.
• Use for through hole or blind hole tapping.



Specification of high speed steel taps

Size Overall Length Thread Length
M3*0.5 46 18
M4*0.7 52 20
M5*0.8 60 22
M6*1 62 24
M7*1 65 26
M8*1.25 70 30
M9*1.25 72 30
M10*1 70 30
M10*1.25 75 32
M10*1.5 75 32
M12*1.75 82 38
M14*2 88 42
M16*2 95 45
M18*1 95 45
M18*2 95 45
M18*2.5 100 48
M20*1 80 30
M20*1.5 95 45
M20*2 95 45
M20*2.5 105 50
M22*1 85 30
M22*1.5 95 45
M22*2 95 45
M22*2.5 115 55
M24*2 95 45
M24*2.5 115 55
M26*1.5 95 45
M27*1.5 95 45
M27*2 95 45
M27*3 130 62
M30*2 105 45
M30*3 135 65
M30*3.5 135 65
M33*3 145 70
M33*3.5 145 70
M36*3 155 75
M36*4 155 75
M38*1.5 115 45
M40*1.5 115 45
M40*2 115 45
M40*3 165 80
M42*1.5 120 45
M42*2 120 45
M42*3 175 80
M42*4 175 80
M42*4.5 175 85
M45*1.5 120 45
M45*2 120 45
M45*3 180 80
M45*4 180 80
M45*4.5 180 85
M48*1.5 125 45
M48*2 125 45
M48*3 180 80
M48*4 180 80
M48*5 185 90
M50*1.5 130 45
M50*2 130 45
M50*3 180 80



3. Package:

Each hand taps set we will use the good quality yellow box this kinds box packing .



Then put the plastic box into the inner box.



The put the inner box in the cartons.



At last put the cartons in the pallet.
